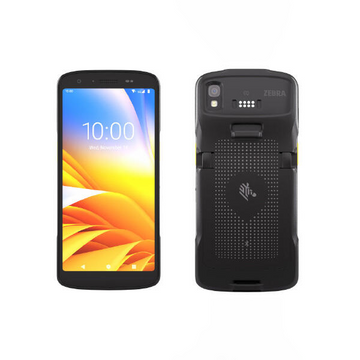

TC22/TC27 Mobile Computers

TC22/TC27 Mobile Computers

TC22/TC27 Mobile Computers

Regular price £0.00
Sale price £0.00 Regular price
Unit price
Product description

Your small or mid-size business competes with industry giants that use the latest enterprise mobile devices to give workers a competitive edge — but the smartphones in your budget don’t offer the features you need. Introducing the equalizer — the TC22/TC27 mobile computers. The third generation of the highly successful TC2x Series, the TC22/TC27 delivers the best of all worlds — smartphone styling and pricing, with big business features that boost productivity and customer service quality. This compact, powerful device offers a large 6 in. display, 5G, Wi-Fi 6E, integrated scanners, support for tap-to-pay and other contactless transactions and more. This durable device is built to outlast consumer phones, providing a better return on investment. And Zebra’s portfolio of services can help you get and keep your devices up and running at peak performance. Get the boost you need to compete with any size business with the TC22/TC27 — the smartphone style workers want, the features your business needs, all at a price you can afford.

Support for private 5G and CBRS3 private LTE networks enables cost-effective wireless connectivity in the largest indoor and outdoor facilities. Bluetooth 5.2 delivers better audio quality while consuming less power, and adds unique features that enable effective ways to communicate and collaborate.

The best of Android — today and tomorrow

Support through Android 16 ensures you won’t outgrow the operating system — you’ll have access to the latest features every day your device is in service.

See more and scroll less with an advanced 6 in. FHD+ display

The larger screen delivers more display space and the bright 450 nits screen is easy to read anywhere — indoors and outside.

Capture barcodes in less time — with less effort

Compared to scanning with a mobile phone camera, Zebra’s enterprise-class scanning options enable workers to capture barcodes in nearly half the time, with half the muscle work.4 Choose from the SE4710 1D/2D standard scan engine or the SE55 1D/2D Advanced Range scan engine with IntellifocusTM technology, able to scan items in hand or on the highest warehouse shelf. Both options deliver split second first time capture of virtually every barcode, regardless of condition.

Ready for the world of contactless transactions

Easily integrate the TC22/TC27 with your existing POS contactless payment solution, allowing customers to simply tap to pay. In addition, the built-in support for Apple VAS and Google SmartTap enables the TC22/TC27 to read tickets, loyalty and gift cards, boarding passes and more stored in Apple or Google wallets.

The smartphone-style device that’s made for work

Power all your apps — simultaneously

Get superior performance on all your apps with a next generation processor that delivers twice the performance of the prior generation,1 plus class-leading memory and data storage options.

The best wireless has to offer

When it comes to wireless, the TC22/TC27 offers it all. 5G and Wi-Fi 6/6E2 deliver wired speeds, providing workers with better voice and data performance inside and outside of your facility.

Physical Characteristics


6.5 in. L x 3.0 in. W x 0.49 in. D
165 mm L x 76.3 mm W x 12.5 mm D

Weight 8.32 oz/236 g (TC22 3800mAh battery)
Display 6.0 in. color Full High Definition+ (1080 x 2160); LED backlight; 450 Nits; Corning® Gorilla® Glass
Imager Window Corning® Gorilla® Glass
Touch Panel Multi mode capacitive touch with bare or light gloved fingertip input
Power User removable, rechargeable Li-Ion, PowerPrecision for real-time battery metrics; Standard Capacity: 3800 mAh/14.63Wh; Extended Capacity: 5200 mAh/20.02Wh; BLE battery: 3800 mAh/14.63Wh
Expansion Slot User accessible MicroSD card supports up to 2 TB
SIM TC27 only: 1 Nano SIM and 1 eSIM (except China)
Network Connections TC22: WLAN, WPAN; TC27: WWAN, WLAN, WPAN
Notifications Audible tone; multi-color LEDs; vibration
Keypad On-screen keypad
Audio Two microphones with noise cancellation; dual speakers for loudness; Bluetooth wireless headset support; high quality speaker phone; PTT headset (Zebra USB-C) support; HD Voice, including Super-wideband (SWB), Wideband (WB) and Fullband (FB)
Buttons Dual dedicated scan buttons; programmable button for PTT or other use; volume up/down; power
Interface Ports USB 3.1 (Bottom Type C) — Super Speed (host and client); 2-pin or 8-pin rear connector

Wireless LAN

WLAN Radio

IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 MU-MIMO, Wi-Fi 6E (802.11ax), Wi-Fi™ certified; Wi-Fi™ 6 Certified, Dual Band Simultaneous; IPv4, IPv6

Data Rates

6 GHz: 802.11ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps 5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps; 2.4 GHz: 802.11b/g/n/ax — 20 MHz up to 286.8 Mbps

Operating Channels Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20/40/80/160 MHz; Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.
Fast Roam PMKID caching; Cisco CCKM; 802.11r; OKC
Security and Encryption WEP (40 or 104 bit); Enhanced Open (OWE); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) - EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) - EAP-TLS; TC27 WWAN models only: WPA3 Enterprise EAP-SIM, EAP-AKA, EAP-AKA Prime

Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6; Wi-Fi
Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi
Agile Multiband; WMM; WMM-Power Save; WMM Admission Control; Voice-Enterprise; Wi-Fi Direct; QoS Management; OCE

Performance Characteristics

CPU Qualcomm® 5430 hex-core, 2.1 GHz
Operating System Upgradeable to Android 16
Memory 6 GB RAM/64 GB Flash; 8 GB RAM/128 GB Flash

Wireless PAN


Class 2, Bluetooth v5.2 and Secondary BLE for beaconing within BLE battery

User Environment

Operating Temp. 14°F to 122°F/-10°C to 50°C
Storage Temp. -40°F to 158°F/-40°C to 70°C
Humidity 5% - 95% non-condensing
Drop Spec.

Multiple 5 ft./1.5 m drops to concrete over operating temp (-10° C to 50° C/14° F to 122° F) with protective boot per MIL-STD-810H
Multiple 4.5 ft/1.3 m drops to tile over concrete over operating temp (-10° C to 50° C/14° F to 122° F) per MIL-STD 810H

Tumble Spec. 500 tumbles, 1.6 ft./0.5 m; 500 tumbles, 3.3 ft./1.0 m with optional protective boot
Sealing IP68 and IP65, with battery per applicable IEC sealing specifications

Discharge (ESD)

+/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge

Environmental Compliance

RoHS Directive 2011/65/EU; Amendment 2015/863; REACH SVHC 1907/2006 For a complete list of product and materials compliance, please visit

General Certifications

TAA compliant; ARCore Google certification sustained


Subject to the terms of Zebra’s hardware warranty statement, the TC22 and TC27 are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For the complete warranty statement, please visit

Recommended Services

Zebra OneCare™ Special Value (SV); Zebra VisibilityIQ Foresight™; Professional Services Video on Device

Interactive Sensor Technology (IST)

Light Sensor Automatically adjusts display backlight brightness
Motion Sensor 3-axis accelerometer with MEMS Gyro
Proximity Sensor Automatically detects when the user places the handset against head during a phone call to disable display output and touch input.
Magnetometer eCompass to detect direction
Pressure Sensor Altitude for locating (TC27 North America only)


1) Compared to TC21/TC26 AnTuTu scores.
2) Mobility DNA Enterprise License is required for Wi-Fi 6E.
3) CBRS is available in the US only.
4) White Paper: Is Camera Scanning Negatively Affecting Your Business; Zebra Technologies; June 2022
5) Workstation Connect software is included with the Mobility DNA Enterprise license, but requires the purchase of the Workstation Connect hardware.
6) Not included with Mobility DNA Enterprise license; requires the purchase of a separate license for Device Tracker.
7) Not included with Mobility DNA Enterprise license; requires the purchase of a separate license for Zebra DNA Cloud.
8) To enable maximum performance and voice quality for Workforce Connect PTT Express, PTT Pro and other VoWiFi solutions, the Mobility DNA Enterprise License is recommended.
9) Available 2H 2023. RFD90 supported as a two-piece solution.
10) Mobility DNA Enterprise License is required to deploy Workforce Connect Voice and other 3rd party full duplex voice solutions for optimal performance and support.

Specifications subject to change without notice.

Data Capture

Scanning SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4710 1D/2D Scan Engine
Camera Rear camera 16 MP; front camera 5 MP
NFC ISO 14443 Type A and B; FeliCa and ISO 15693 cards; Card Emulation via Host; Contactless payment support; ECP1.0 and ECP2.0 polling support; Apple VAS certified
UHF RFID RFD40 UHF RFID Sled; RFD90 Ultra-Rugged UHF RFID Sled


Wireless WAN Data and Voice Communications (TC27)

 Frequency Band

North America: 5G FR1: n2/5/7/12/13/14/25/26/29/38/41/48/66/71/77/78; 4G: B2/4/5/7/12/13/14/17/25/26/29/38/41/48/66/71; 3G: B2/4/5; Rest of World: 5G FR1: n1/2/3/5/7/8/20/28/38/40/41/66/71/77/78; 4G: B1/2/3/4/5/7/8/13/17/20/28/38/39/40/41/42/43/66/71; 3G: 1/2/4/5/8; 2G: 850/900/1800/1900; China/Japan: 5G FR1: n1/3/5/7/8/28/38/40/41/77/78/79; 4G: B1/3/5/7/8/19/18/26/28/34/38/39/40/41/42; 3G: B1/5/6/8/19; 2G: 850/900/1800; Dual SIM/Dual Standby, VoLTE, Gigabit LTE-A, 5G NR Sub-6 (NSA, SA), LTE/NR Carrier Aggregation, supports private networking (LTE/5G)

GPS GPS, GLONASS, Galileo, Beidou, QZSS, Dual-Band GNSS — concurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA


Mobility DNA

Mobility DNA solutions help you get more value out of our mobile computers by adding functionality as well as simplifying deployment and management of our mobile devices. For more information on these Zebra-only features, please visit

Mobility DNA Professional integrated solutions are preloaded and pre-licensed, provided at no cost. To take advantage of the complete Mobility DNA offerings for the TC22/TC27, a Mobility DNA Enterprise license is required. For more information about Mobility DNA tools, please visit
