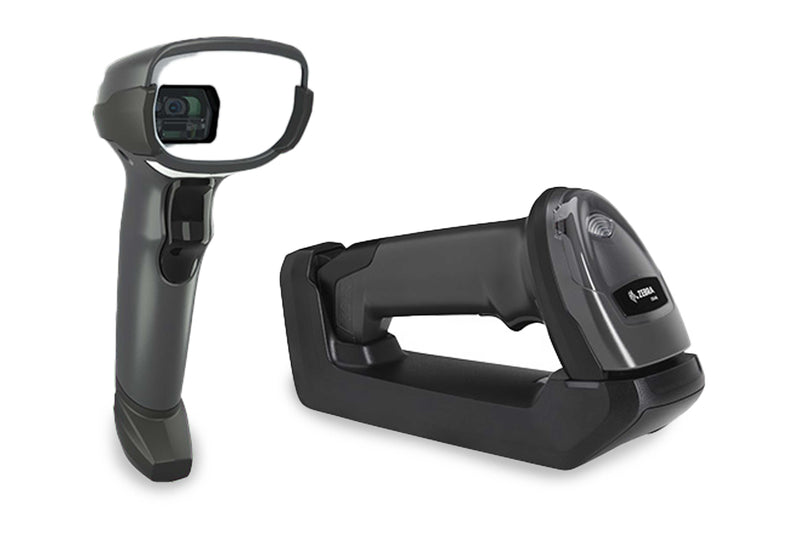

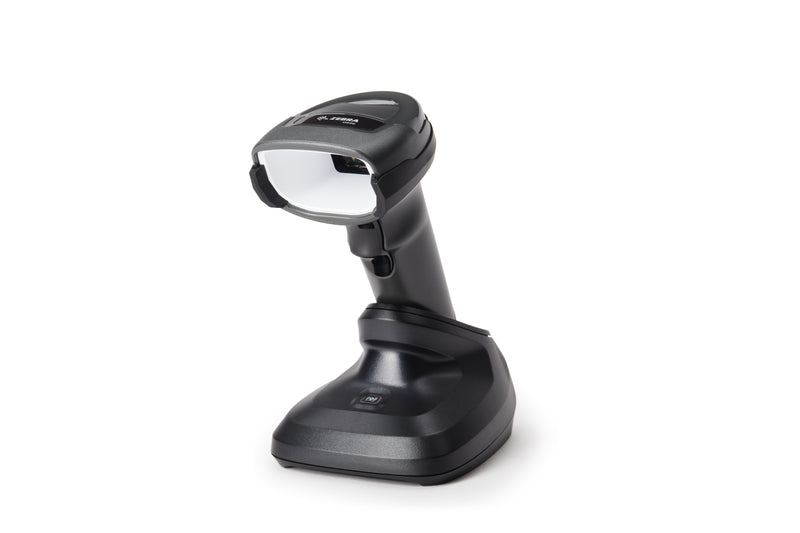

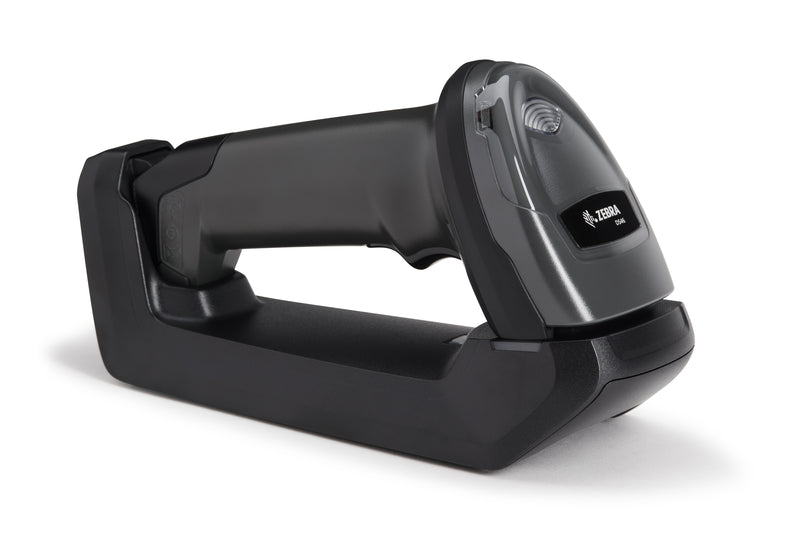

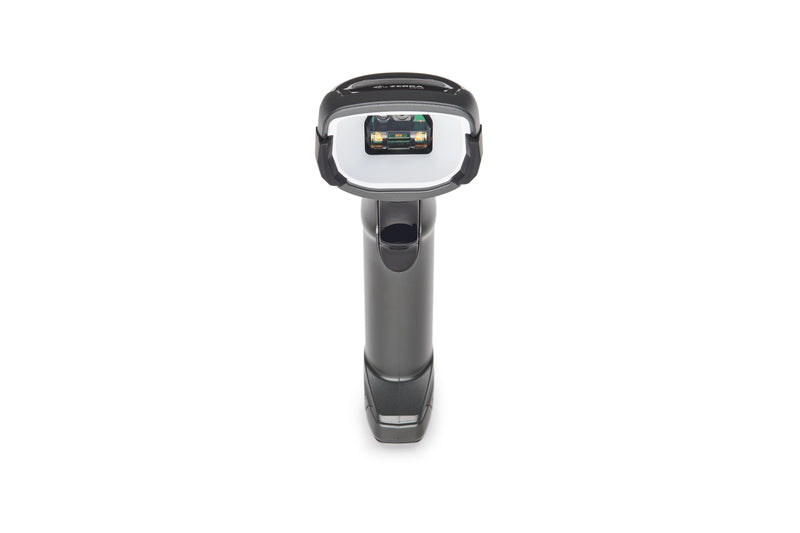

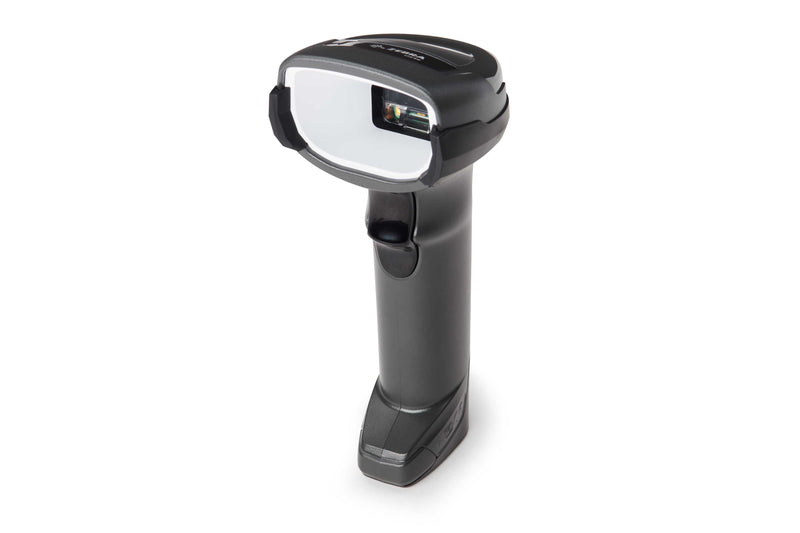

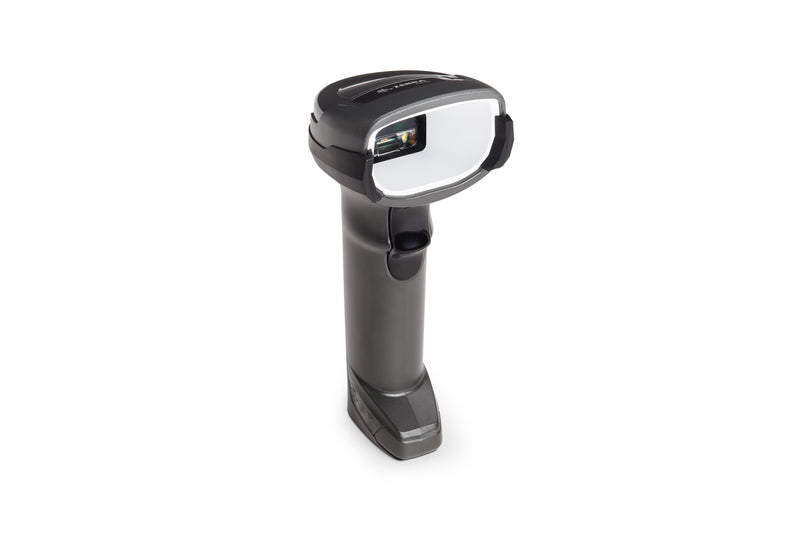

DS4678-DPE Handheld Scanner

.
Request a Quote
Potential cost savings for larger orders

In the Box

  • DS4678-DPE Corded handheld scanner
  • USB cable
  • Presentation cradle (cordless model)

Key Features

  • Scan Type: 2D, 1D
  • Image Sensor: 1280x800 pixels
  • Scan Range: High Density, Direct Part Marks
  • Corded/Cordless: Cordless
  • Battery Capacity: 13 hours (2,500 mAh)
Full Specifications Get SupportGet Support

Description

The cordless DS4678-DPE is purpose built to capture whatever type of barcodes are found in your electronics manufacturing operations-from laser etched direct part marks, high density and low contrast codes, to 4-inch wide barcodes. It's battery delivers more than 50,000 scans in a single charge.

  • Badge 1

Commonly Used For

  • Line Side Replenishment
  • Track and Trace
  • Assembly and Materials Management

Know Before You Buy

The Zebra DNA software suite makes your devices more powerful and easier to manage, with tools that provide simple setup and top performance. Enhance productivity for your workforce even more with accessories designed to complement and enhance scanner operation; we offer a choice of power supplies, battery packs, adapters, mounts, holsters and more. In addition, a Zebra OneCare maintenance plan provides timely support and comprehensive repair services above and beyond the standard warranty, saving on unbudgeted repair expenses.

Configurations

Choose among these features when configuring for purchase

Scan Range High Density Direct Part Marks
Scan Type 2D 1D
Battery Type Li-Ion PowerPrecision

Accessories

Extend your device to do more and last longer.

View Accessory Guide

Compare with Similar Items

Models
This Model
DS4678-DPE
Also in this series
DS4678
Corded/Cordless

Cordless

Cordless
Scan Technology

Array Imager

Array Imager
Scan Range

High Density
Direct Part Marks

Standard Range
Scan Type

2D
1D

2D
1D
OCR
Image Sensor

1280x800 pixels

1280x800 pixels
Battery Type

Li-Ion
PowerPrecision

Li-Ion
PowerPrecision
Connectivity

Bluetooth 5.2

Bluetooth 5.2
Power Supply

4.7 to 5.5 VDC (host powered)
10.8 to 13.2 VDC (external power)
Form Factor

Handheld

Handheld
Color

Black

Black

Warranty Information

Subject to the terms of Zebra’s Limited Warranty, and unless otherwise stated in the exception list the WS50 RFID Wearable Computer is warranted for a period 12 months from the date of shipment from Zebra or, with proof of purchase, from the purchase date whichever is later, against defects in workmanship and materials, provided the Hardware remains unmodified and is operated under normal and proper conditions and in accordance with Zebra published specifications. Warranty Terms apply.
