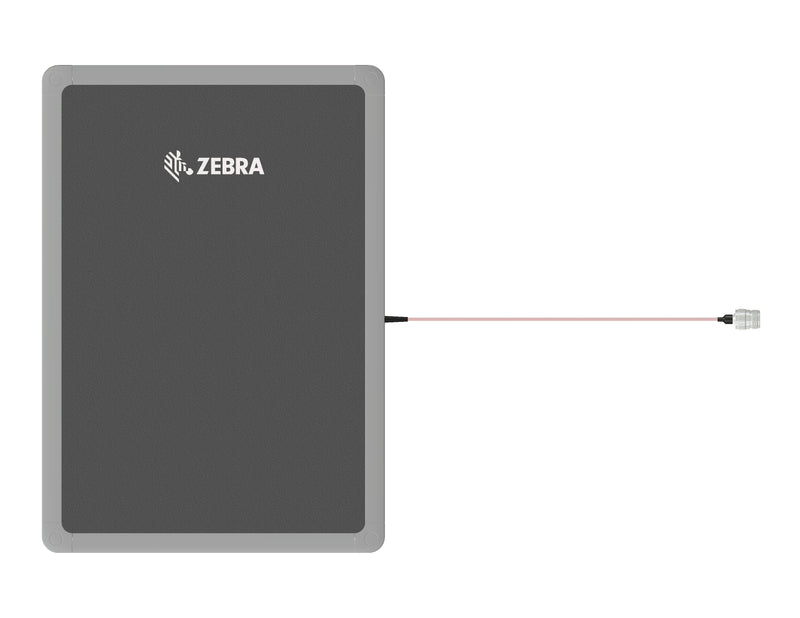

AN620 Slimline RFID Antenna

.
Request a Quote
Potential cost savings for larger orders

In the Box

Key Features

  • Polarization: Left-hand circular
  • Gain: 7 dBiC
  • Beam Width: 75° horizontal, 48° vertical
  • Dimensions: 15.39 x 10.82 x 0.47 inches (391 x 275 X 12 mm)
  • IP Sealing: IP54

Description

The AN620 is a larger slim line, ultra-low profile antenna that is suitable for use in indoor environments.

  • 5G flat logo
  • EPEAT registry mark
  • Common Criteria logo
  • Wi-Fi Certified 6
  • Android Enterprise Recommended

Commonly Used For

  • Point of Sale
  • Access Control
  • Shipping and Receiving
  • Shelf and Product Labeling

Configurations

Compare with Similar Items

Models
This Model
AN620
Also in this series
AN610
Operating Temperature

-4°F to 131°F (-20°C to 55°C)

-4°F to 131°F (-20°C to 55°C)

IP Sealing

IP54

IP54

Polarization

Left-hand circular

Left-hand circular

Gain

7 dBiC

5 dBiC

Beam Width

75° horizontal, 48° vertical

80° both planes

Dimensions

15.39 x 10.82 x 0.47 inches (391 x 275 X 12 mm)

10.8 x 8.5 x 0.3 inches (275 x 214 x 12 mm)

Warranty Information

Subject to the terms of Zebra’s Limited Warranty, and unless otherwise stated in the exception list the WS50 RFID Wearable Computer is warranted for a period 12 months from the date of shipment from Zebra or, with proof of purchase, from the purchase date whichever is later, against defects in workmanship and materials, provided the Hardware remains unmodified and is operated under normal and proper conditions and in accordance with Zebra published specifications. Warranty Terms apply.
